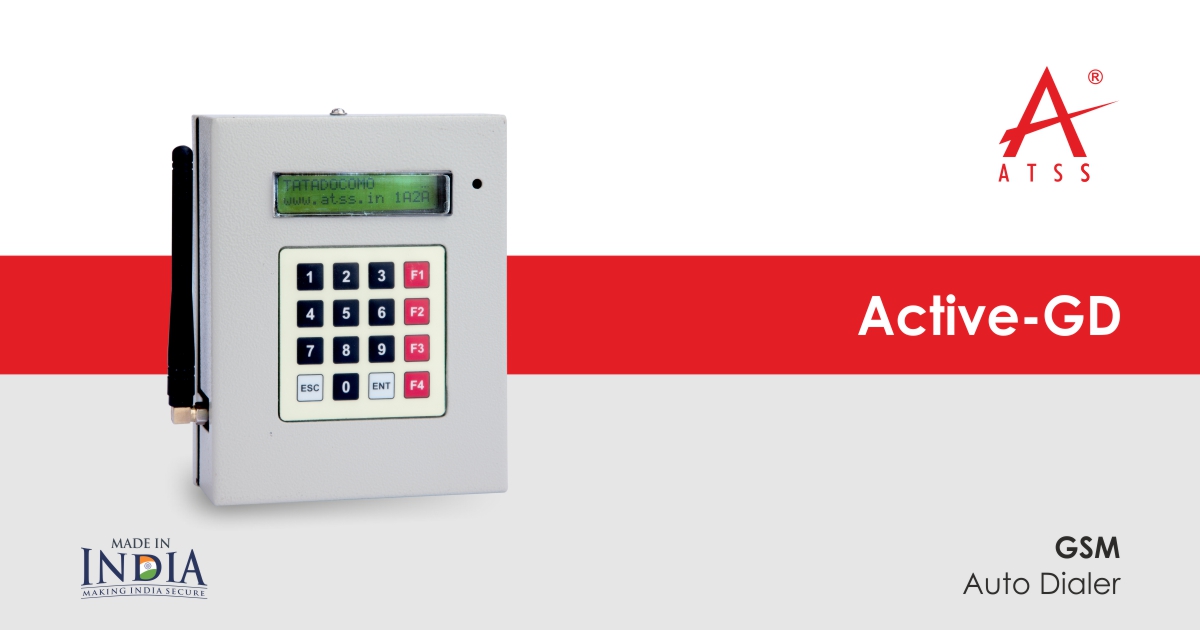

Active-GD 5G GSM Dialer
Secure | Smart | Real-Time Alerts A powerful microcontroller-based 5G-compatible GSM dialer designed for both intrusion and fire alarm systems.
Key Features
🔹 2 Trigger Inputs (NO/NC – Normally Open/Close)🔹 Onboard Keypad with 32-bit LCD Display
🔹 Dual Trigger Alerts – Individual SMS & Voice for each trigger
🔹 Up to 16 Custom SMS Texts
User-Friendly Controls
🔹 Arm/Disarm via Password or SMS🔹 User Password Change Option
🔹 SMS Alerts & Calls Instantly on Trigger
🔹 20-Second Voice Message Recording (per trigger)
🔹 Playback Speaker for Voice Messages
Communication & Storage
🔹 Built-in GSM Modem🔹 Stores Up to 10 Phone Numbers
🔹 SMS Confirmation for Arm/Disarm Events
🔹 First 3 Numbers Have Admin Control Access
🔹 Balance Inquiry via SMS
Advanced Security & Integration
🔹 External Relay Output (for both Trigger & Application Modes)🔹 Relay Control via SMS (Application Mode)
🔹 Tamper Detection for Control Panel Door
Ideal for:
✔️ Residential & Commercial Security
✔️ Fire Alarm Integration
✔️ Remote Security Management
Solution
The Active-GD is a 5G-enabled GSM alarm dialer designed to provide instant alerts via voice call and SMS to pre-stored phone numbers whenever an event is triggered. It operates on GSM frequency and ensures reliable communication during emergencies.
This advanced system features a built-in LCD display with keypad and supports 2 configurable triggers (NO/NC), making it ideal for integration with both intrusion and fire alarm panels.
| POWER SUPPLY | |
|---|---|
| Maximum Power Consumption | 24 Watts |
| DC/AC Main Supply | 12-24 V/2 amps |
| ZONES | |
| Zone Response Time | 500 Millisecond |
| Zone Loop Resistance | 1kilo Ohm For Normally Closed |
| Max Length of Sensor Cable (multi core cable) | 150 m (Depends on cable resistance) |
| GSM Antenna | 3 db required |
| RELAY-NORMALLY CLOSED | |
| Max Voltage/Current ratings | AC 240 V/5 A |
| ENVIRONMENTAL | |
| Environment | Residential/ Commercial/ Light Industrial |
| Max Humidity | 95% Non-Condensing |
| Operating Temperature | 0° C To 45° C |
| Storage Temperature | -20° C~+60° C |
| PHYSICAL | |
| Colour | Grey Coloured Metal Box |
| Control Panel Dimensions(mm) | (H X W X L)=150*45*130 |
| Weight | 570g |
